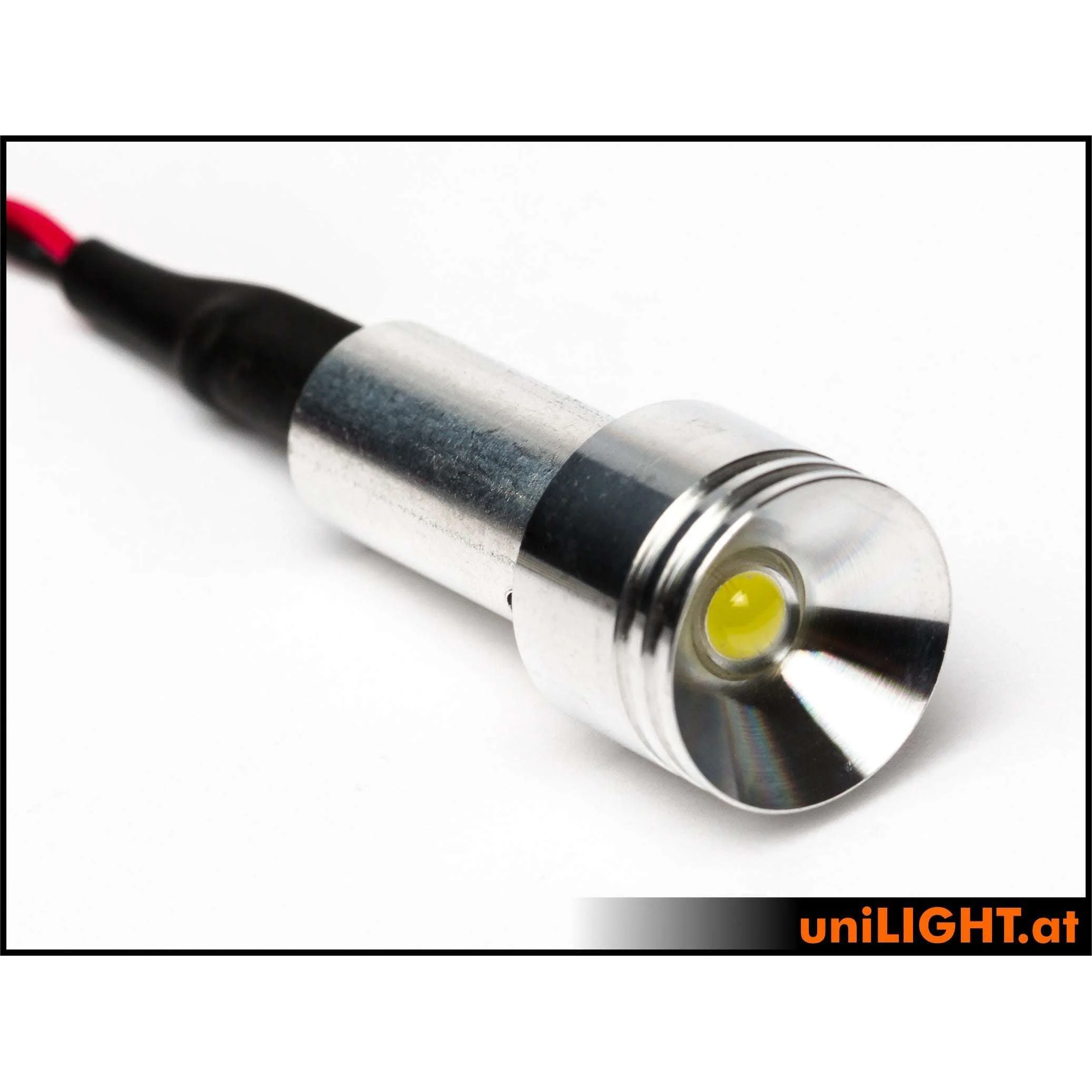

15mm Alu-Spotlight, 4W

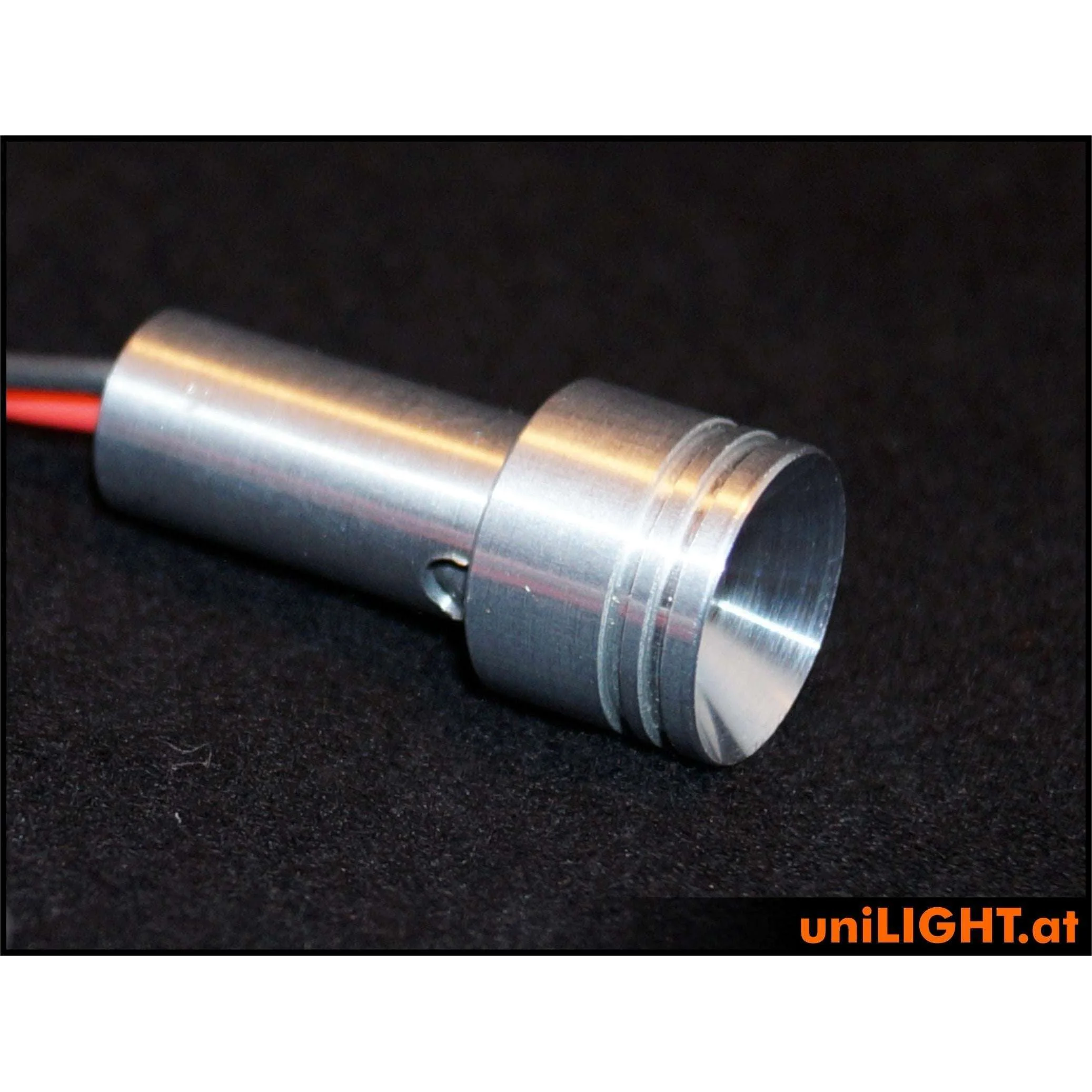

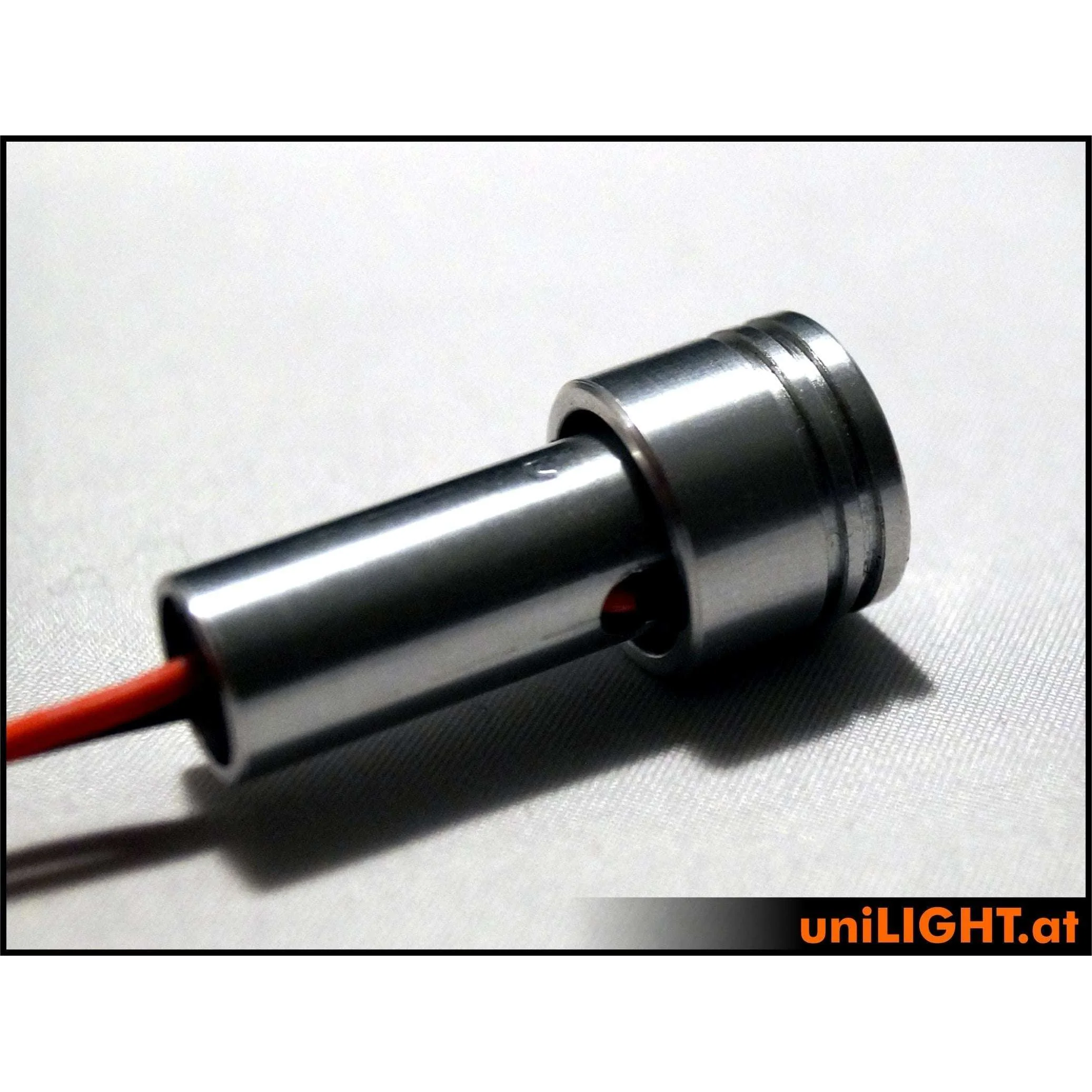

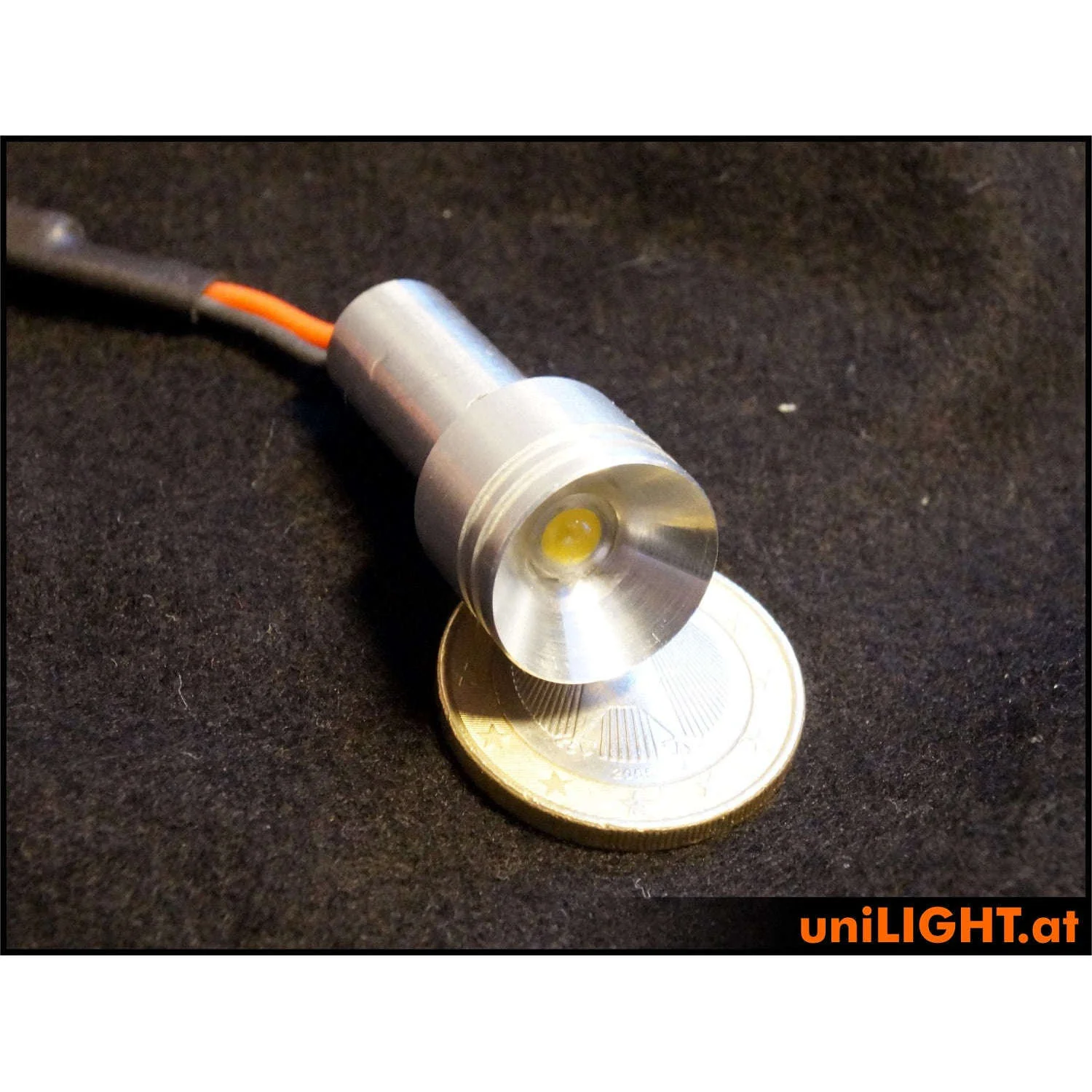

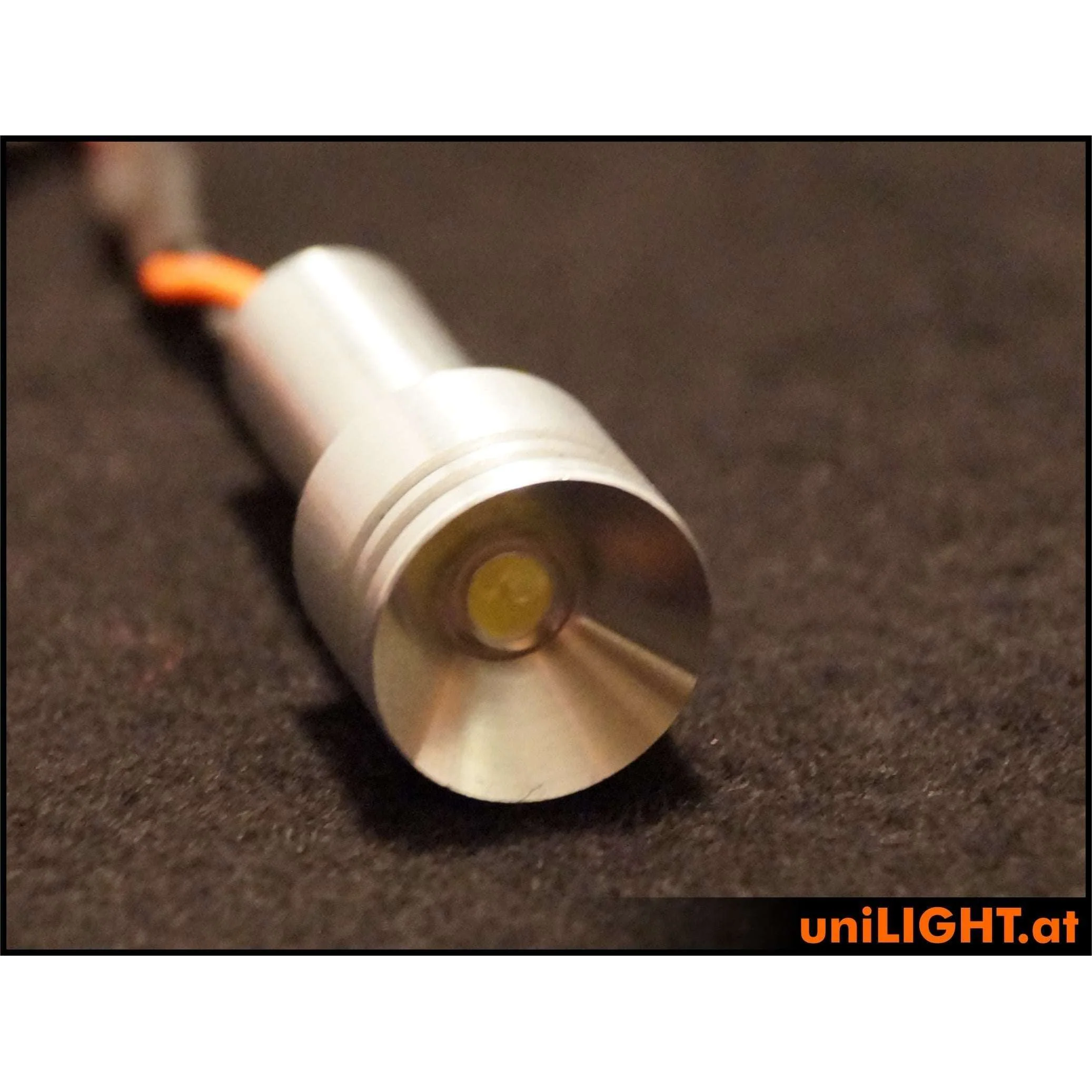

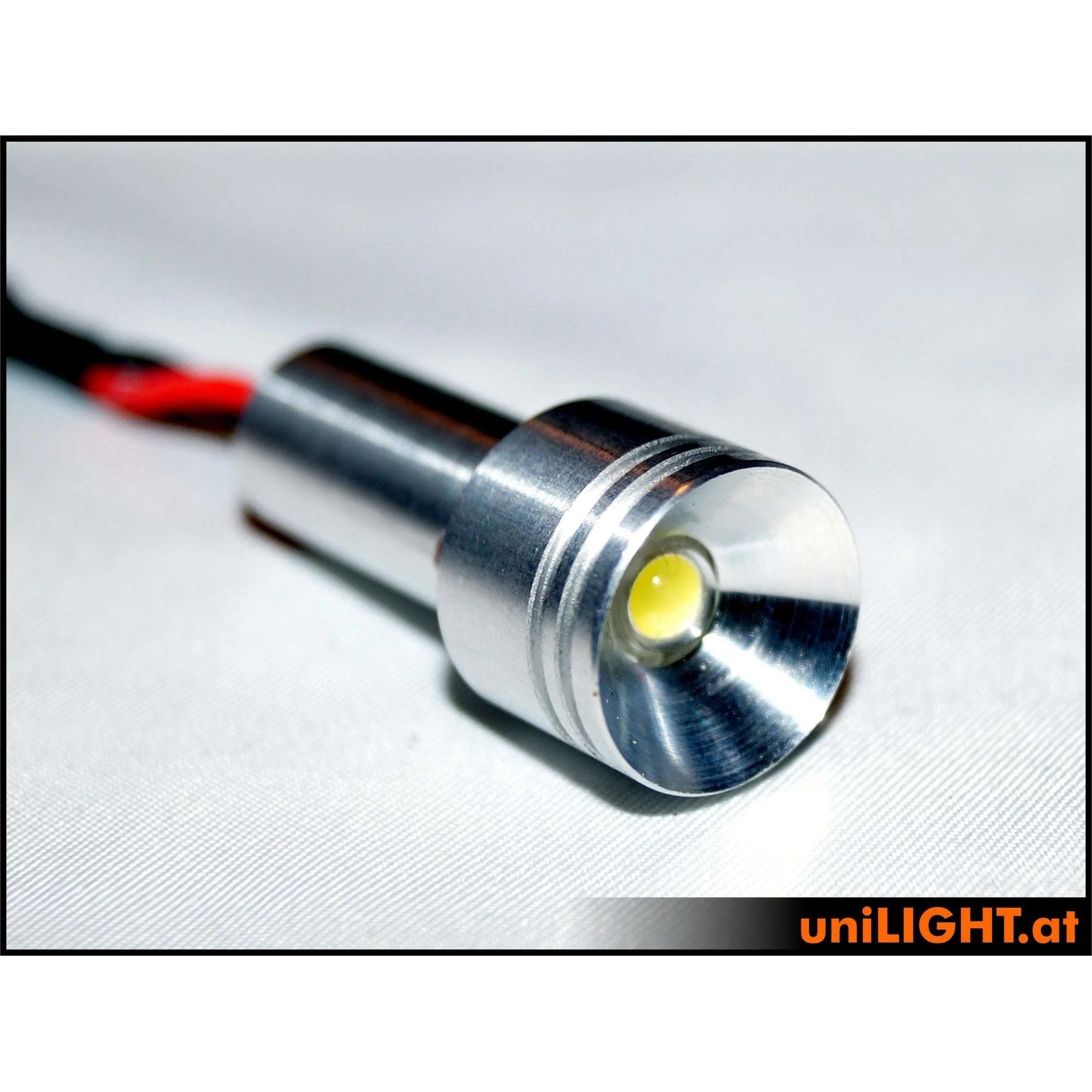

Small spotlight with CNC manufactured aluminium reflector (15mm diameter).

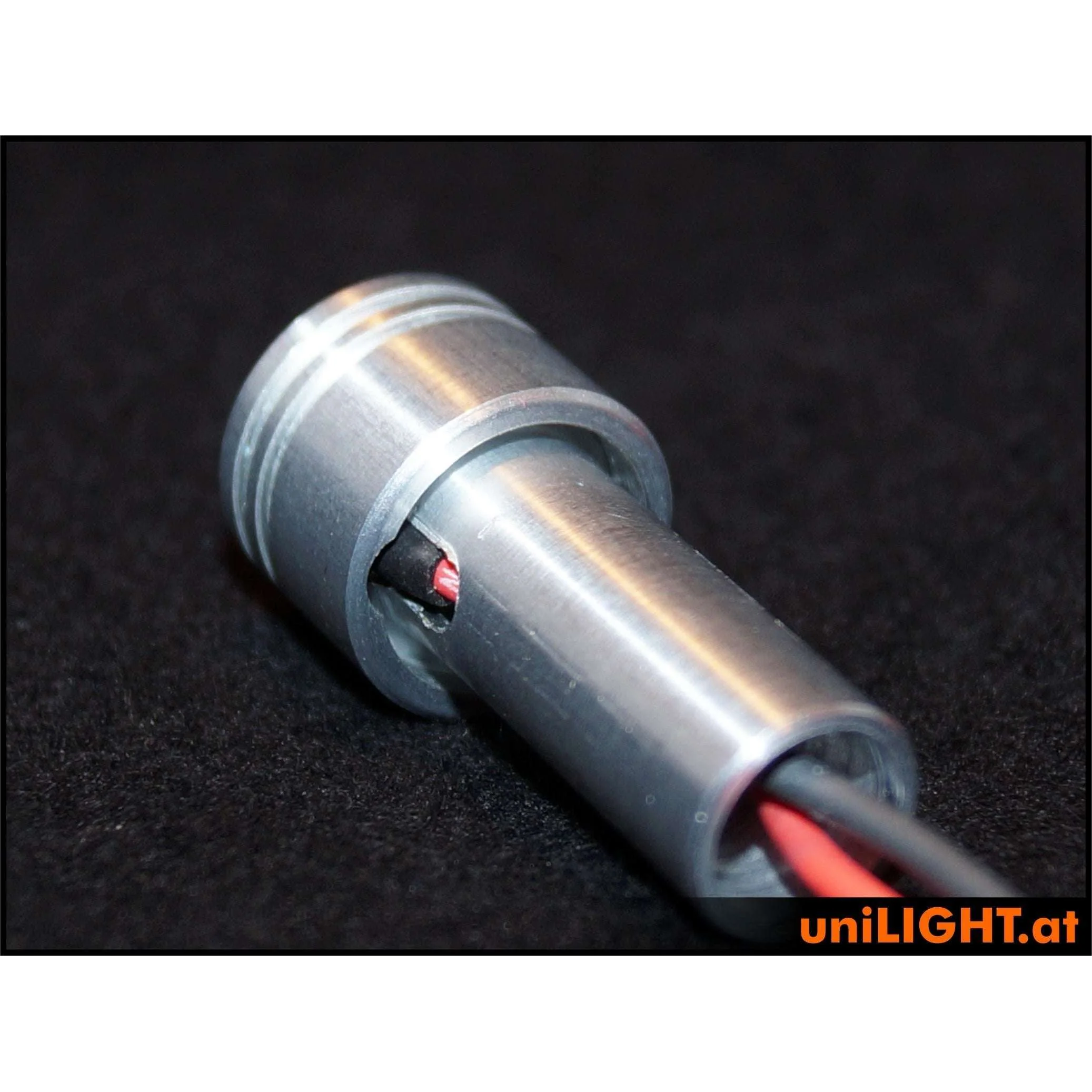

10mm mounting hole required.

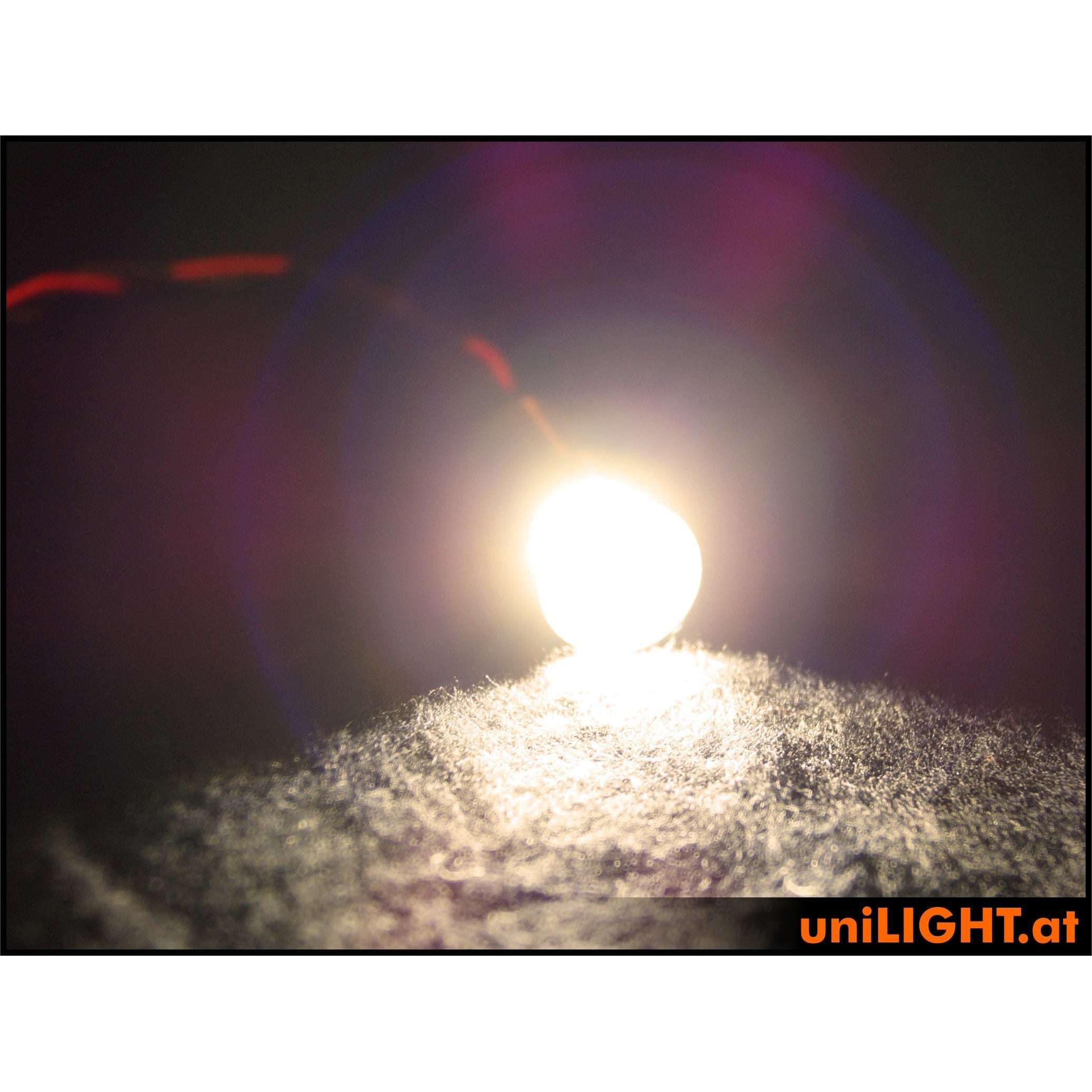

Short construction and enormous luminous power are what characterizes this compact spotlight.

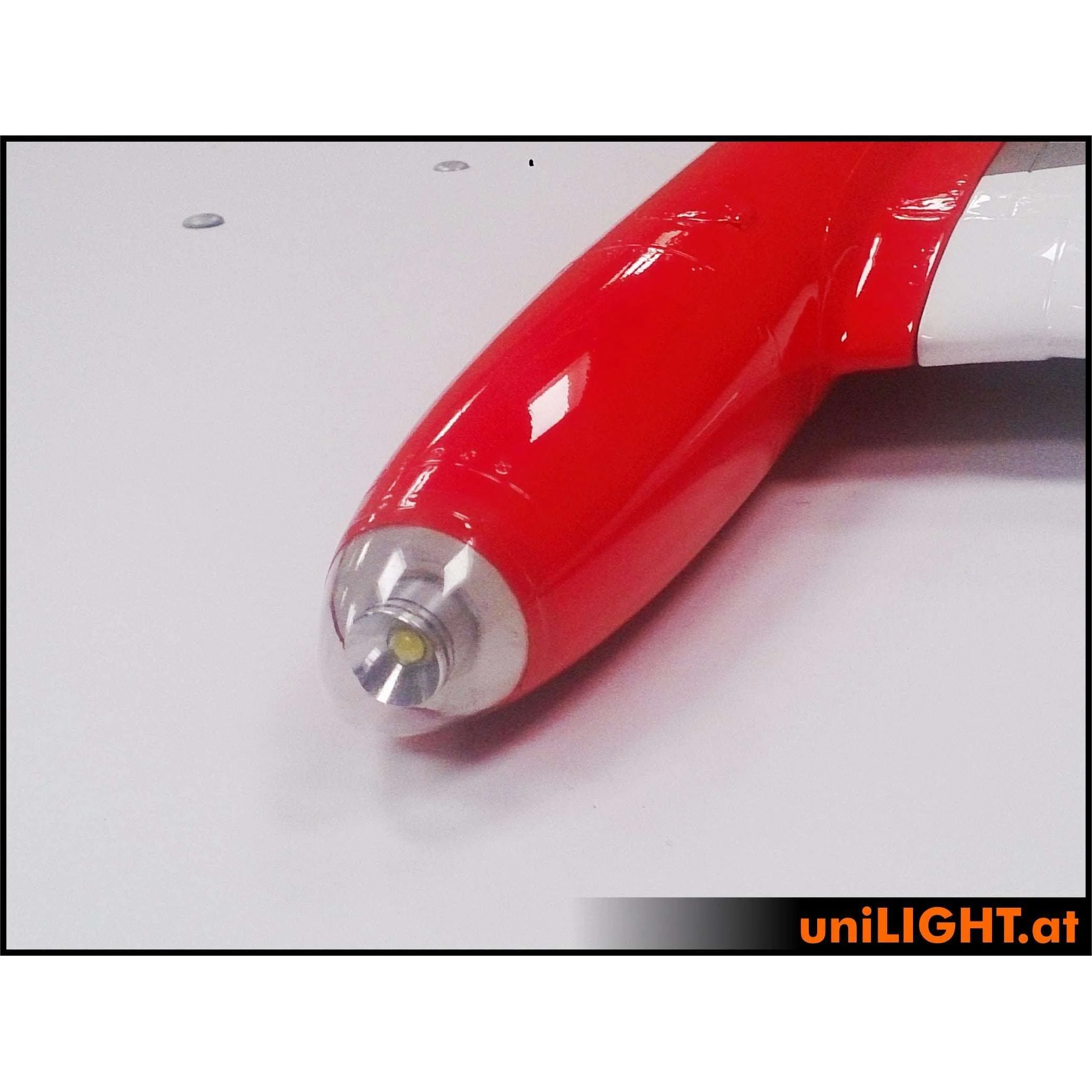

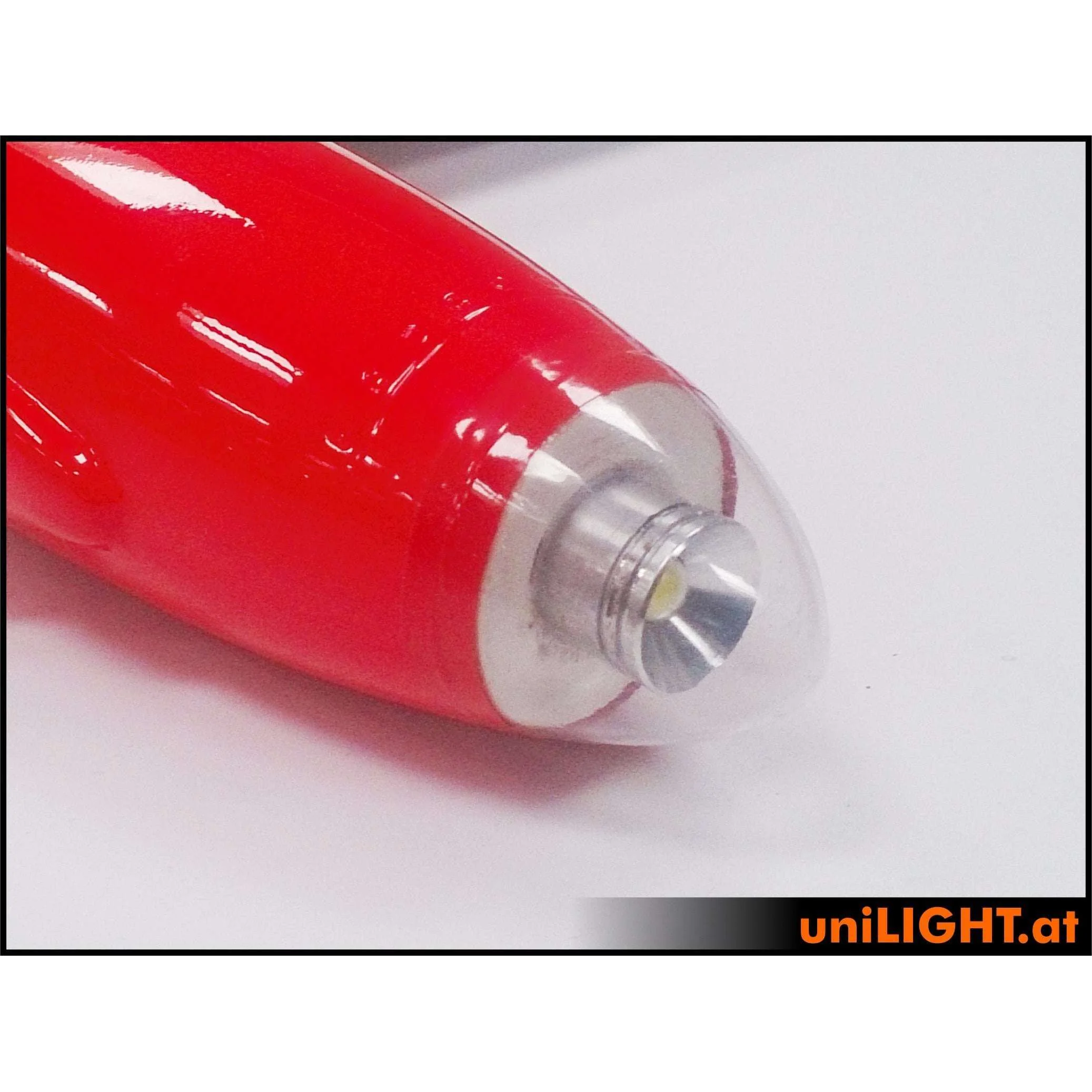

Ideal for medium-sized models and for the wish of cleraly visible spotlights.

Direct operation with 2S LiPo (8V).

With 3S (12V), the additional enclosed resistor has to be soldered in or use a 4W adaption cable (accessories).

Please ensure sufficient cooling air during operation.

Without any further flow, do not operate the spotlights more than 5-10 minutes at a time.

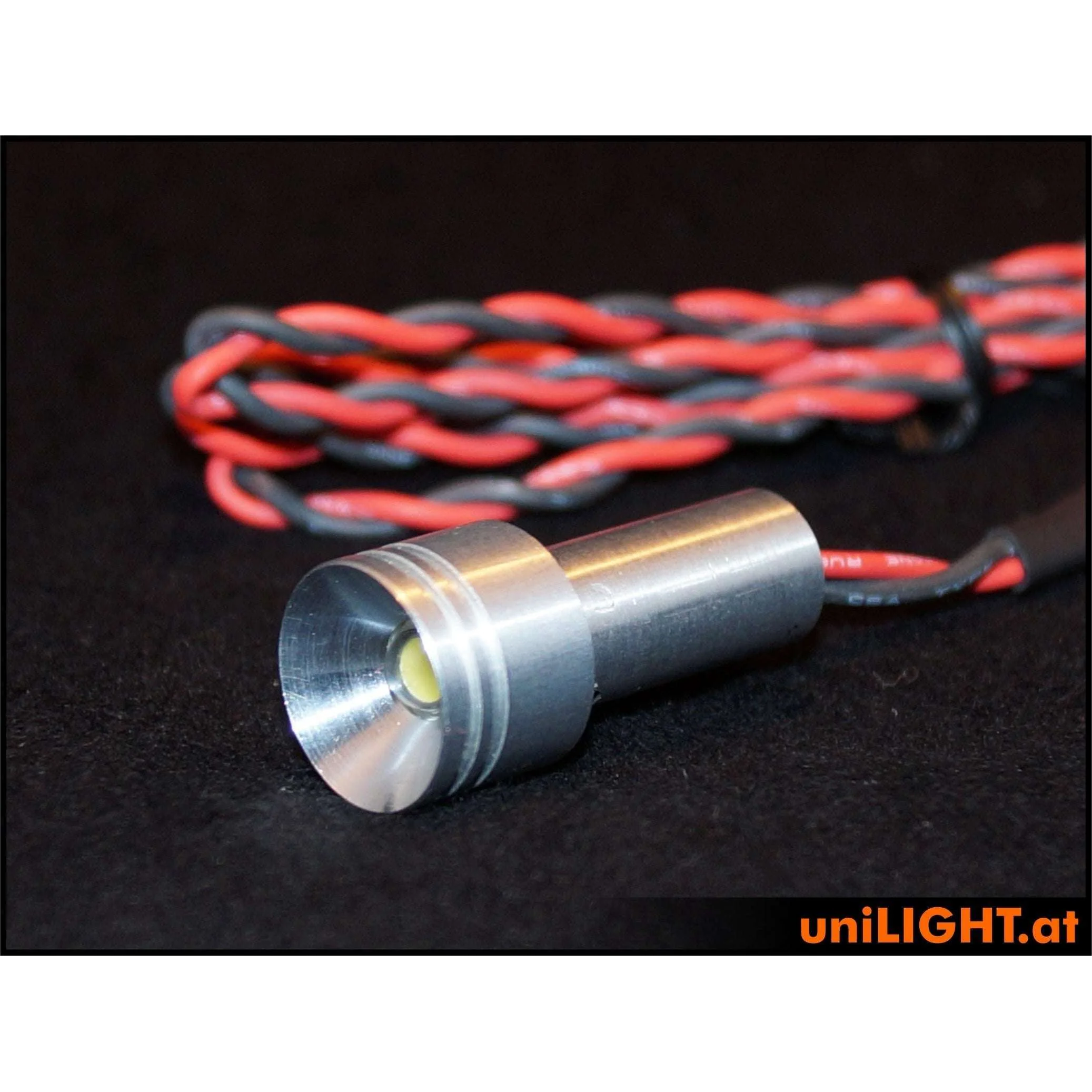

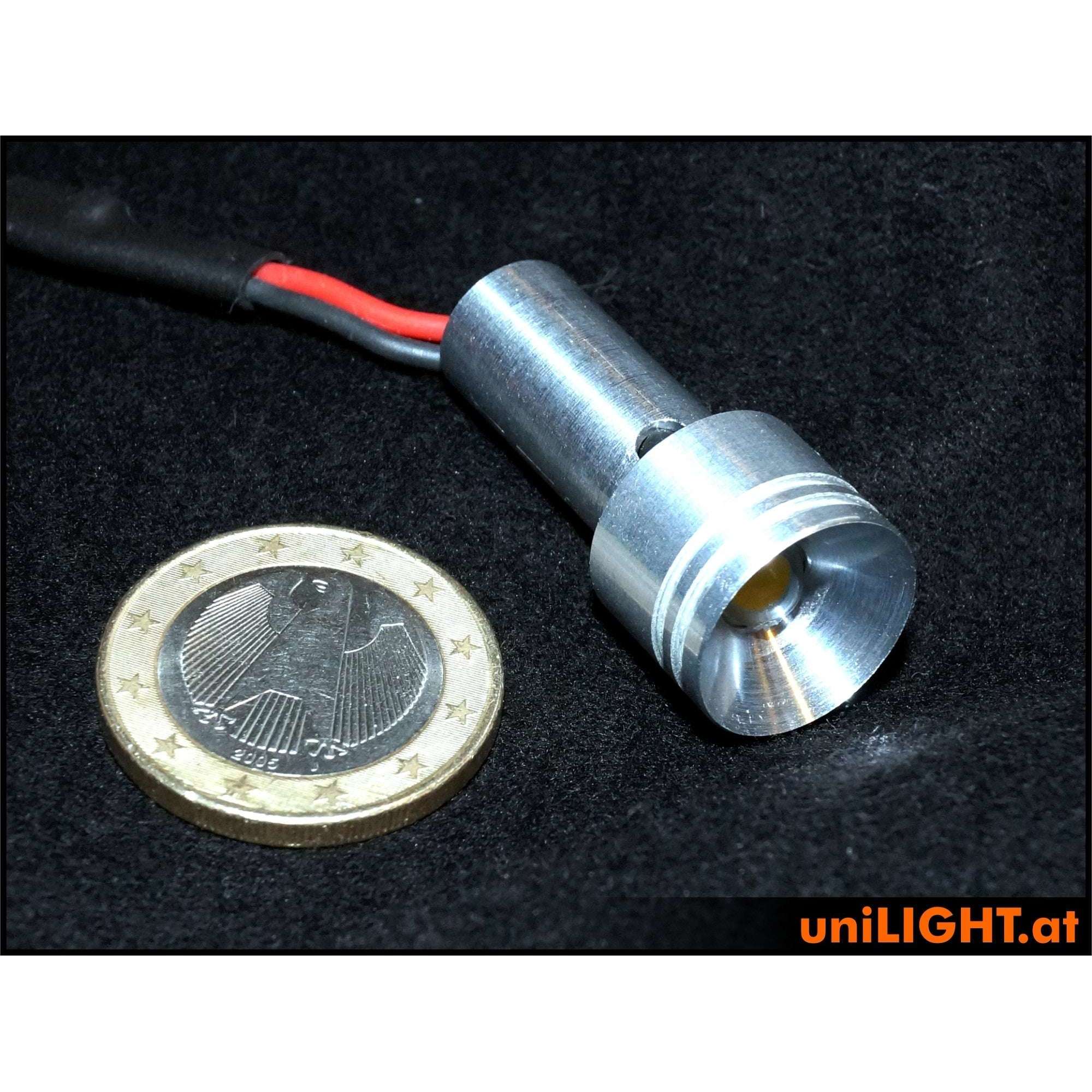

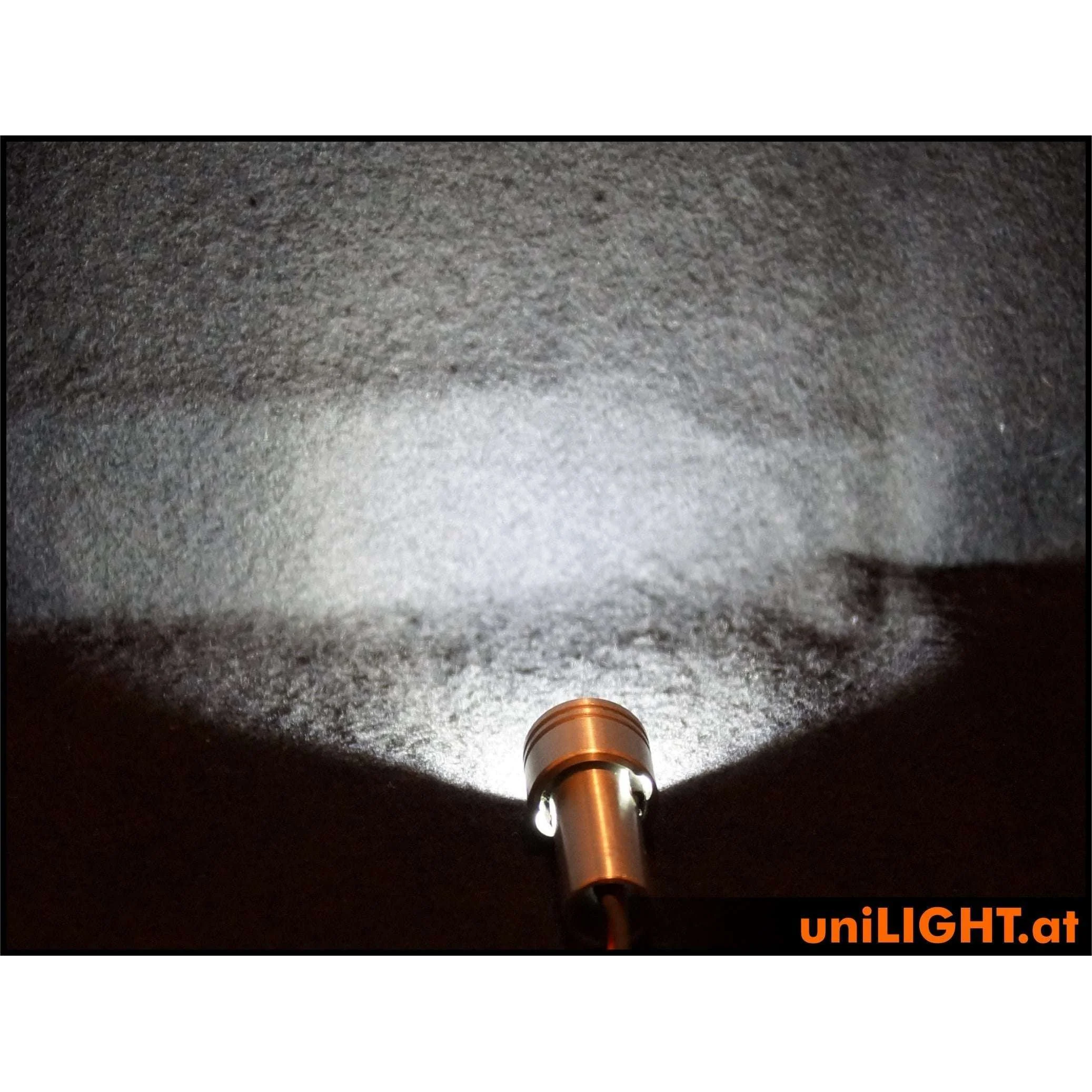

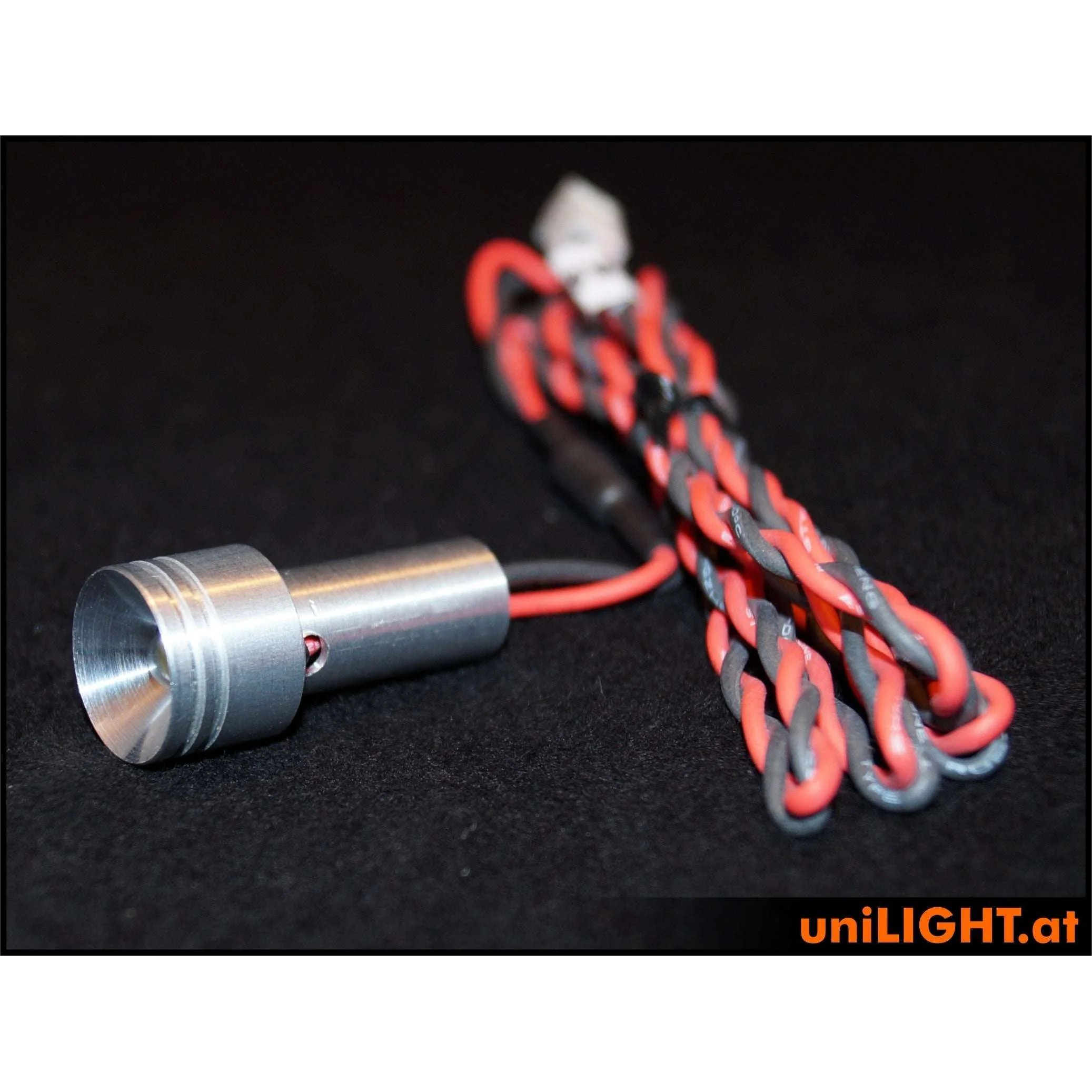

Performance: 4W reference power Voltage: 8V, use enclosed resistor additionally for 12V! Electricity: 0.35A Beam angle: ~110° Light intensity: ~110 Lumen WHITE Light intensity: ~95 Lumen WARMWHITE Dimension: D12x33mm, mounting hole D10mm Weight: 6g (without cable) Ready to use for 2S/8V, with 1m connection cable and additional resistor for 3S/12V operation The reference power is a comparison value between our offered lights.

It normally refers to an operating voltage of 12V/3S Lipo and is dependent on bulbs, operating mode and technology. Pay always attention to the operating temperature, we do not assume any warranty in case of overheating.

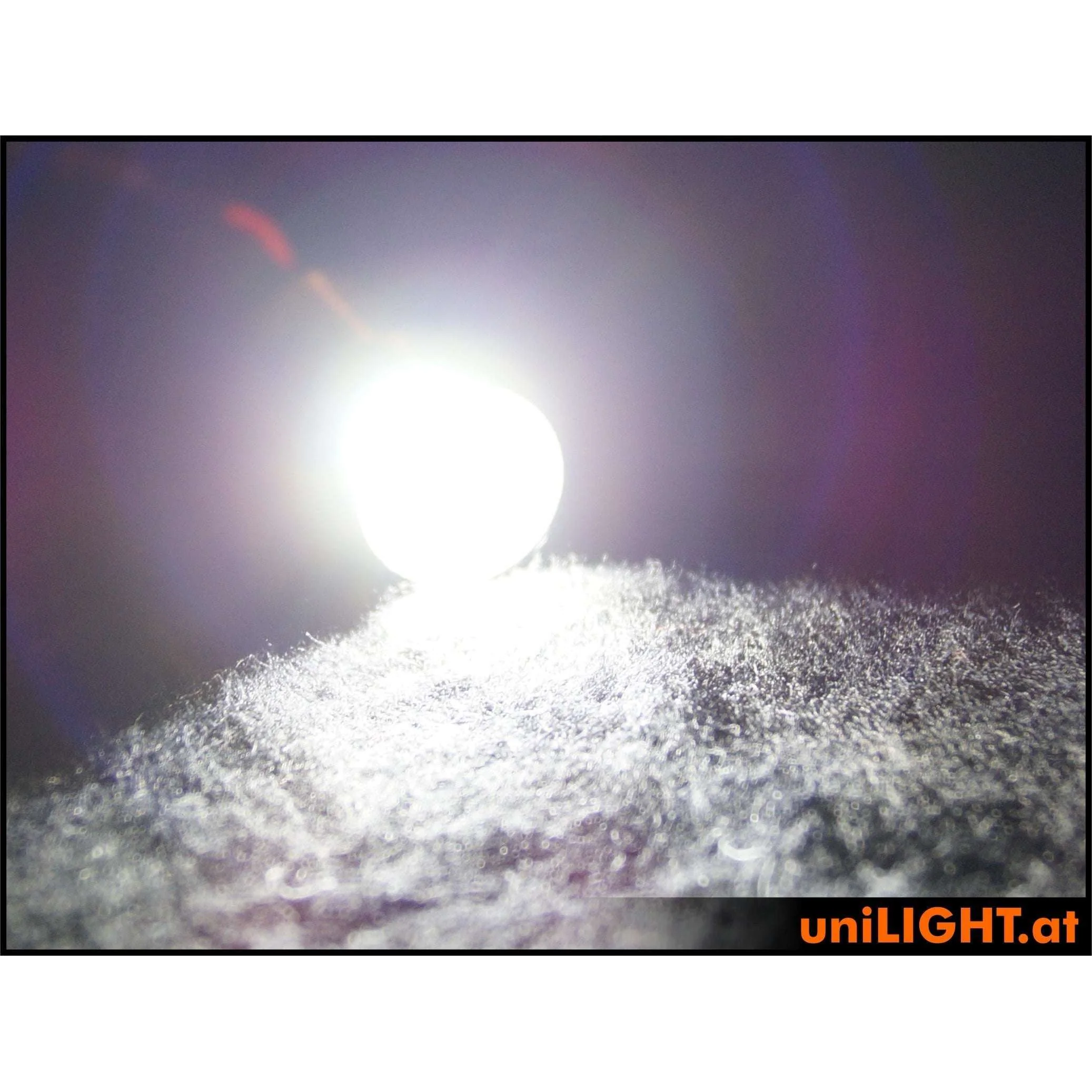

Note: The LED lights are extremely bright! Never look directly into a LED! TECHNICAL INFORMATION CONNECTION
