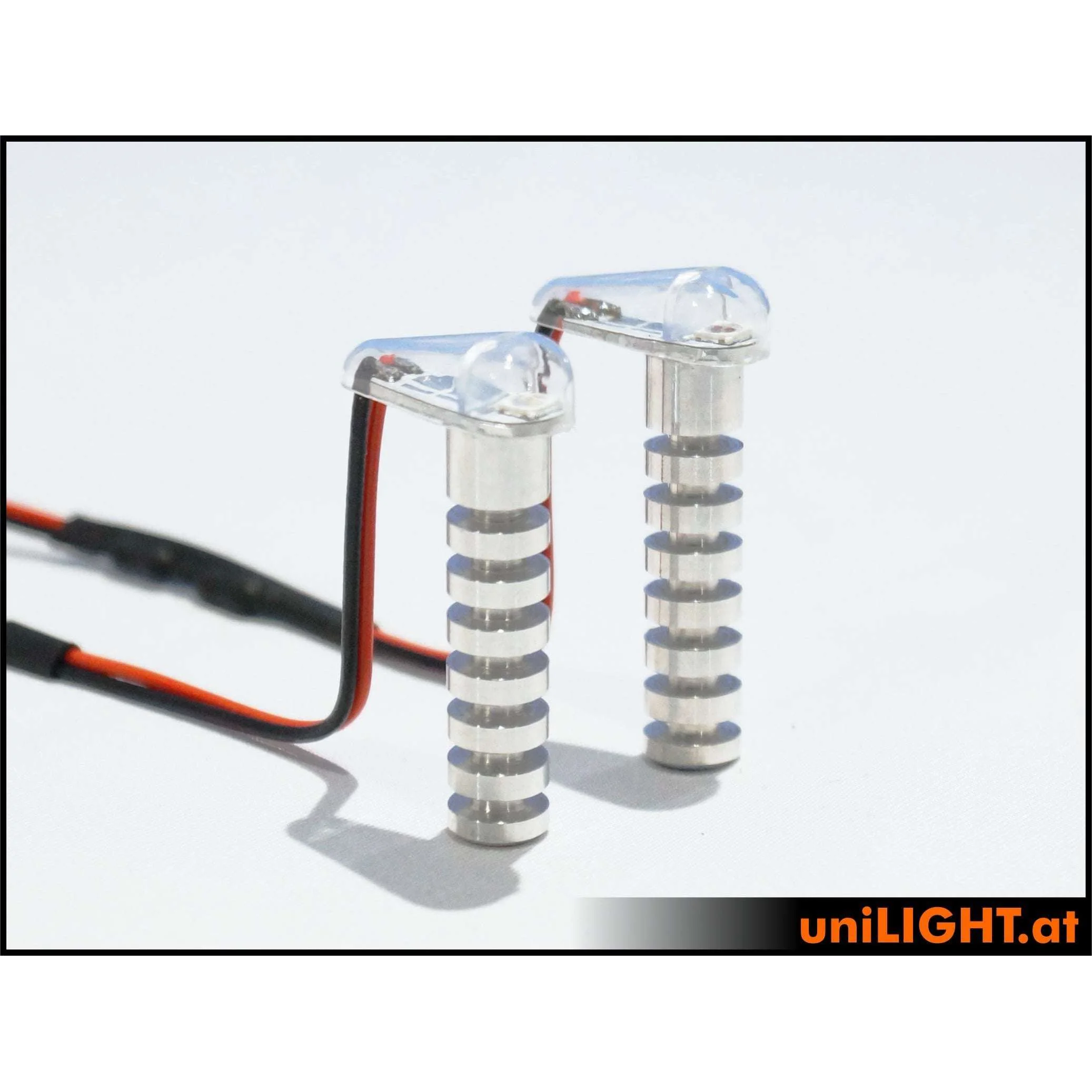

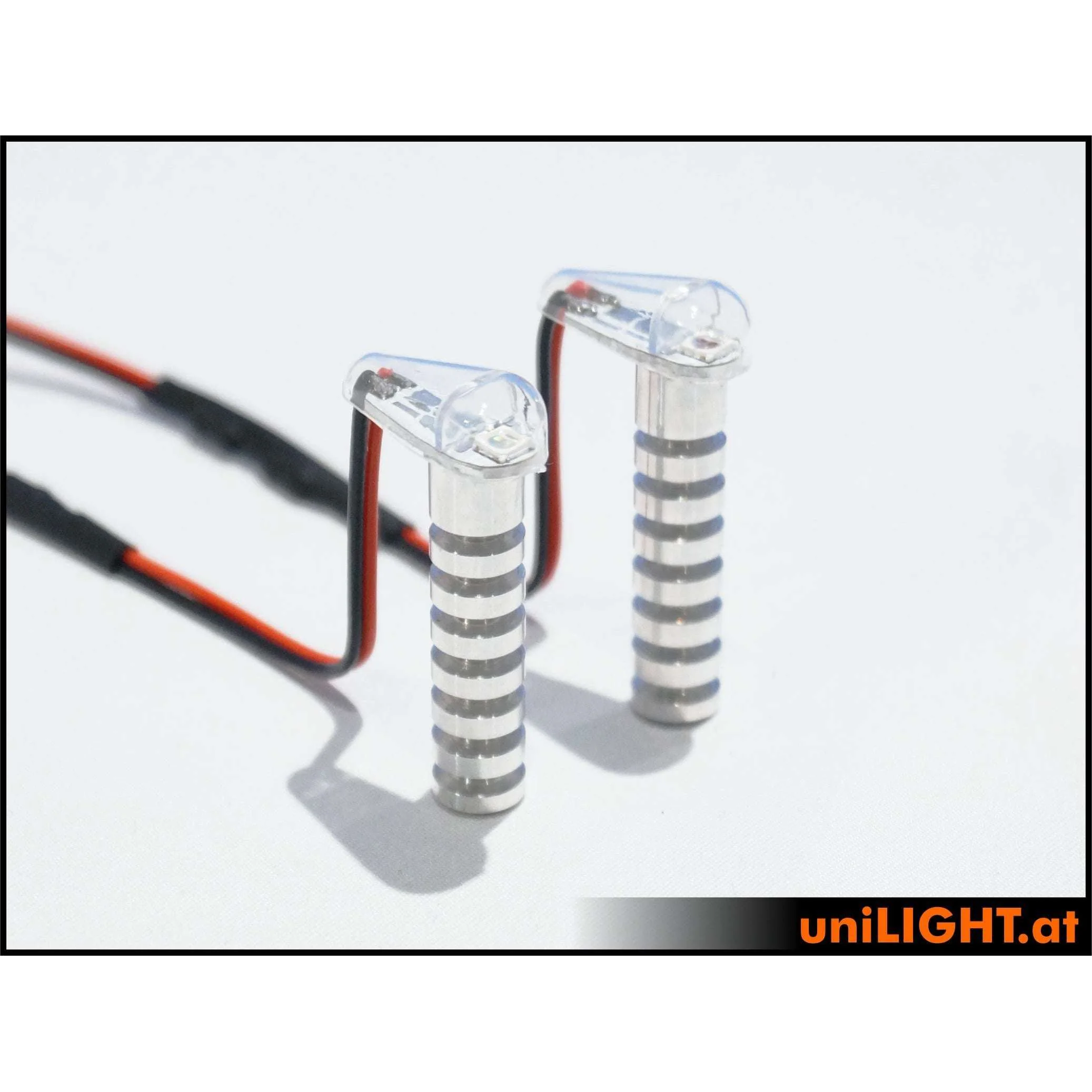

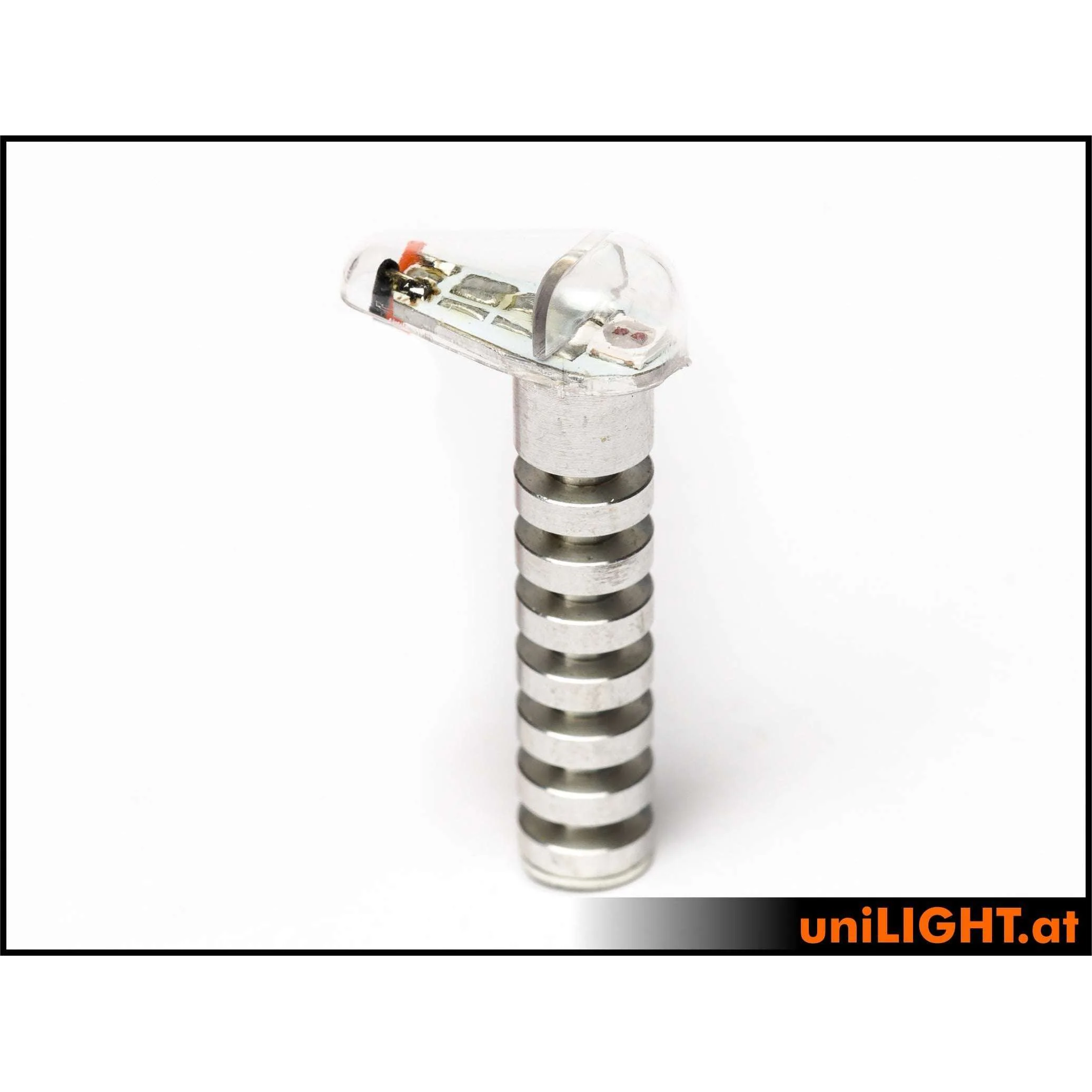

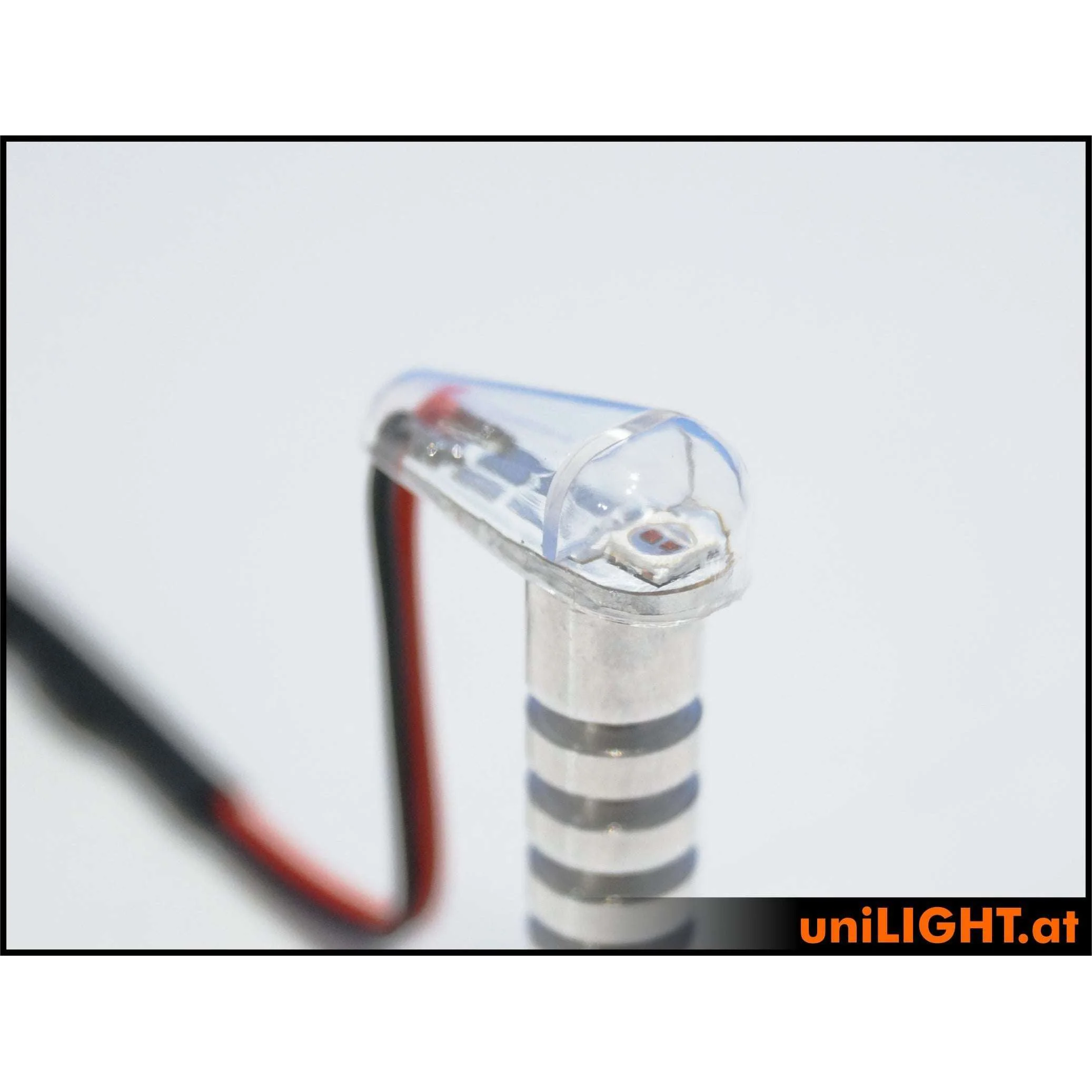

7mm PRO Navigation Light, 1.5Wx2, FLAT - Kopie

Miniature navigation light with new COB chip generation, very small but powerful like standard lights, fits optically onto the smallest models with big scale factors.Electricity: 2Wx2 reference power, 8(12)V, 0.17A Beam angle: >120° Light intensity: ~30 Lumen RED Light intensity: ~60  Lumen GREEN Light intensity: ~110 Lumen WHITE Dimension: 19x8x6 Dimension cooling pin: D7x30 Weight: 4g (without cable)Ready to use with 0.5m PTFE cable and ready made series resistor for 2S, resistor for 3S enclosed The reference power is a comparison value between our offered lights.

It normally refers to an operating voltage of 12V/3S Lipo and is dependent on bulbs, operating mode and technology.  The luminaire is ready to use for operation with 2S LiPo (ca.

8V).

With 3S (12V), the enclosed resistor has to be added.

Please note that high-performance LEDs can get very hot, up to 70°C is quite normal.

These lamps with heatsink cases are suitable for continuous operation if an air flow (during flight) is possible.

If this is not the case, the duty cycle of 5-10 minutes should not be exceeded. Pay always attention to the operating temperature, we do not assume any warranty in case of overheating.

Note: The LED lights are extremely bright! Never look directly into a LED! TECHNICAL INFORMATION CONNECTION
