$11.70The Story

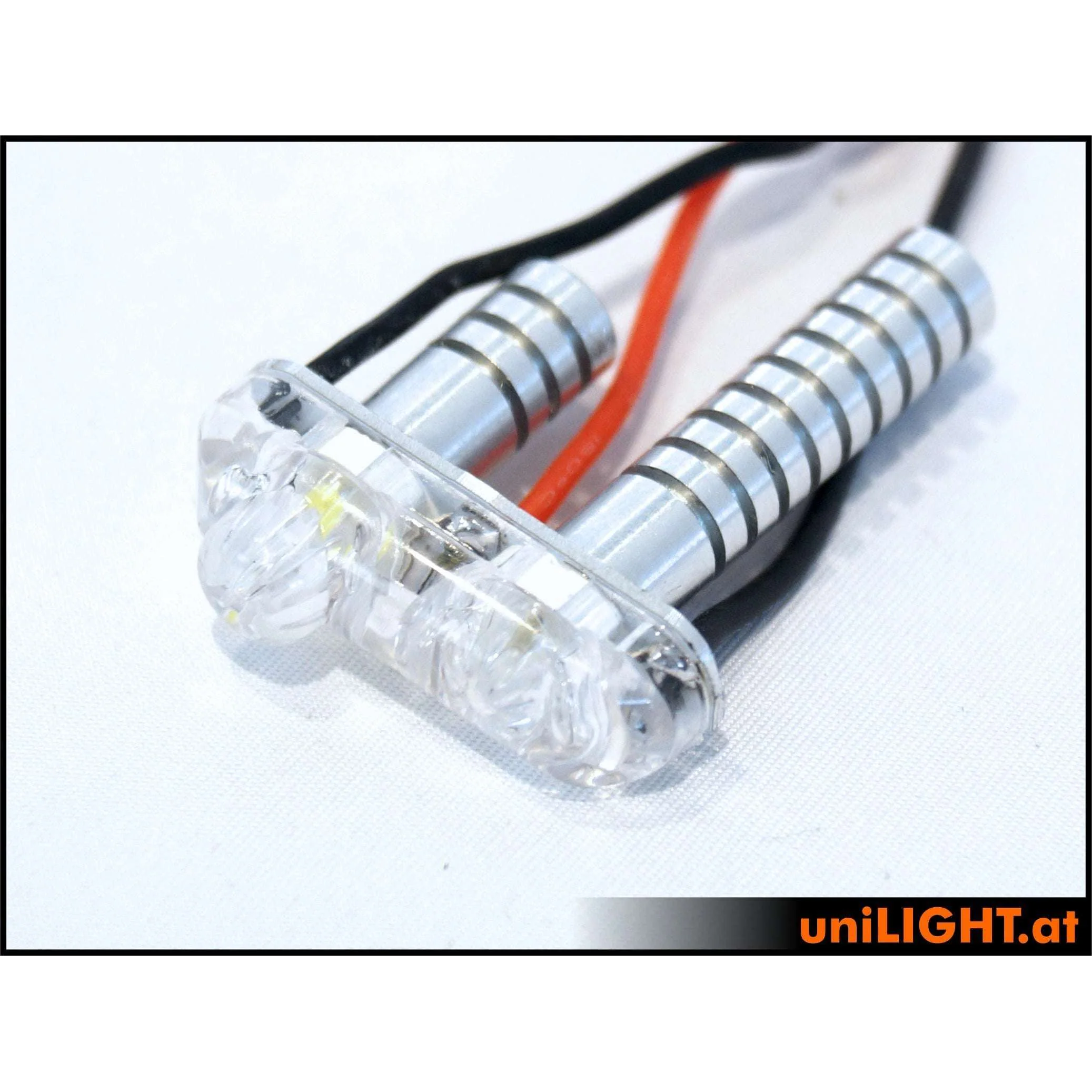

The profile light of the 8mm series is slim outside and fits optically also onto smallest models.
Due to efficient LED emitter, the light has an enormous luminous power despite the compact dimension.
The special aluminium core PCBs with CNC manufactured heatsinks enable smallest dimensions with an unique slim design.
In delivery state, the polycarbonate spreading cap is simply attached.
It can be varnished separately.
It's highly transparent and unbreakable.
If desired, you can recess the luminaire up to 3mm, thus achieving an even smaller construction.
The cap must be glued after the final assembly.Electricity: 4W RED/GREEN and 4W WHITE reference power, 8(12)V, 2x0.35A Beam angle: >160° Light intensity: ~50 Lumen RED Light intensity: ~70 Lumen GREEN Light intensity: ~200 Lumen WHITE Dimension assembly pin: D7x14mm and D7x29mm Dimension light cap: 8x30x8mm, up to 4mm lowerable without loss of beam angle Weight: 6g (without cable)Ready to use with 1m silicon cable and series resistor for 2S operation, resistor for 3S enclosed The reference power is a comparison value between our offered lights.
It normally refers to an operating voltage of 12V/3S Lipo and is dependent on bulbs, operating mode and technology. The luminaire is ready to use for operation with 2S LiPo (ca.
8V).
With 3S (12V), the enclosed resistor has to be added.
Please note that high-performance LEDs can get very hot, up to 70°C is quite normal.
These lamps with heatsink cases are suitable for continuous operation if an air flow (during flight) is possible.
If this is not the case, the duty cycle of 5-10 minutes should not be exceeded. Pay always attention to the operating temperature, we do not assume any warranty in case of overheating.
Note: The LED lights are extremely bright! Never look directly into a LED! TECHNICAL INFORMATION CONNECTION
