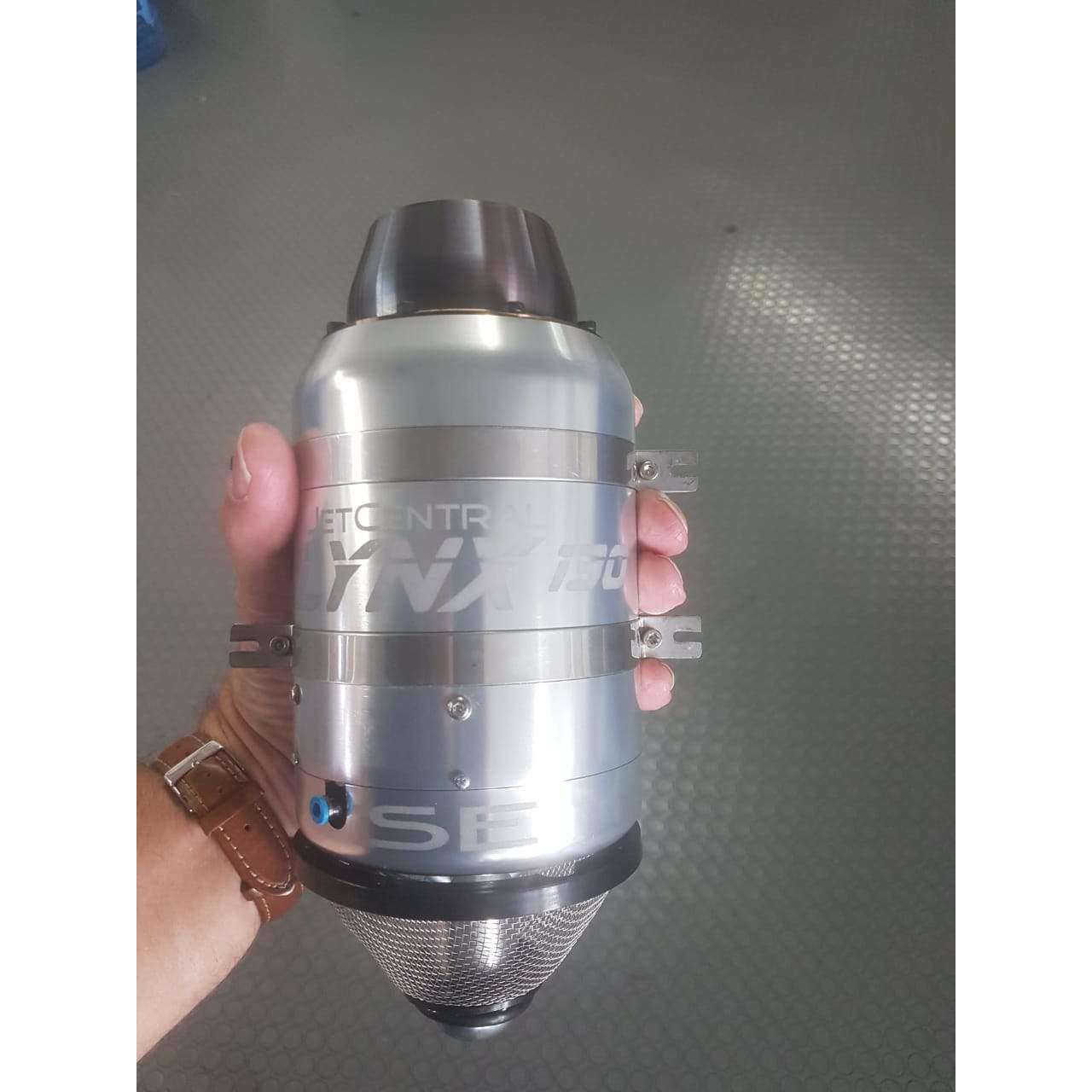

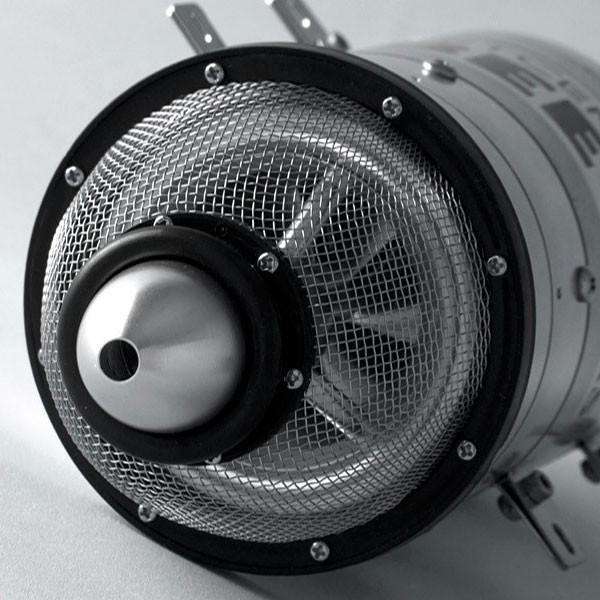

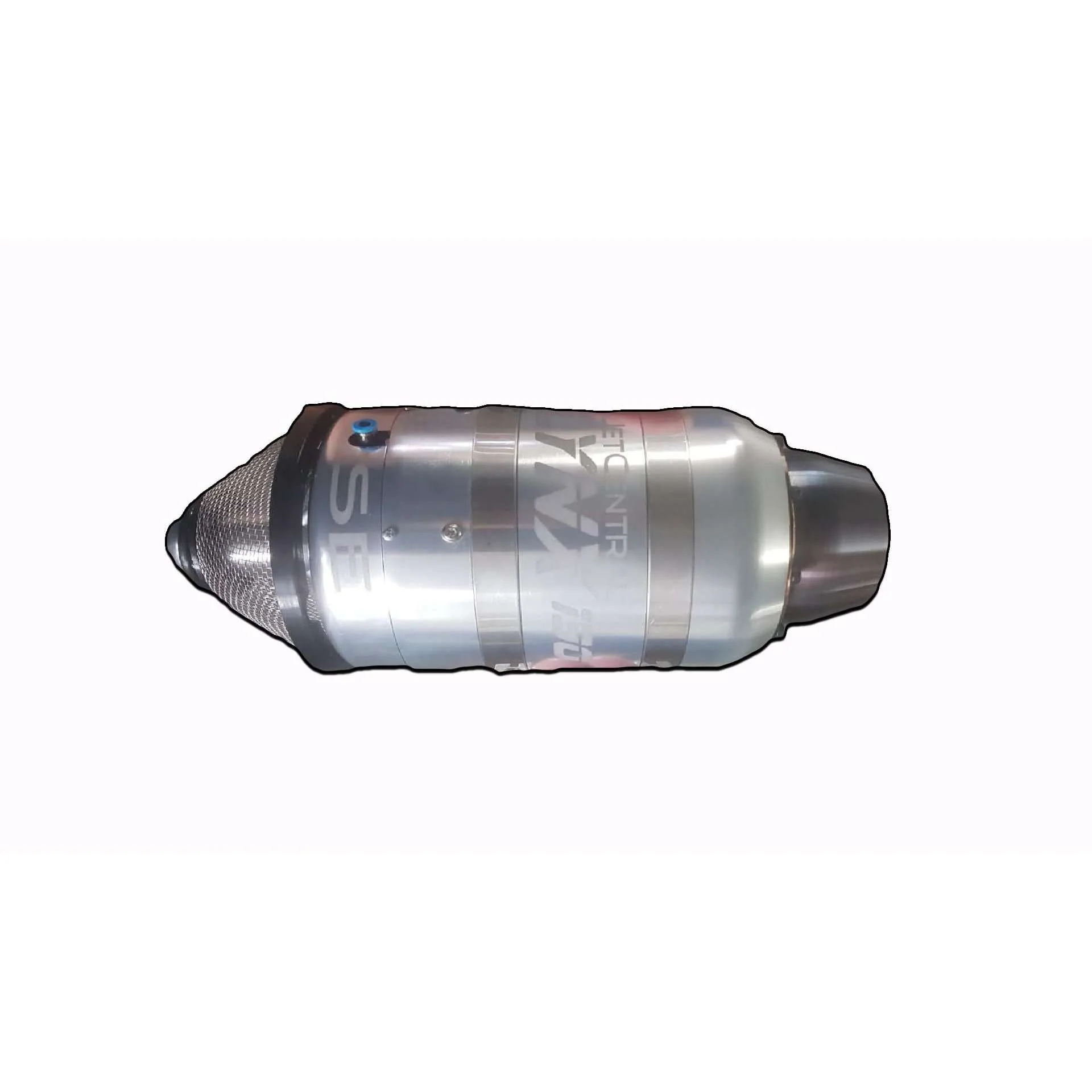

Jet Central LYNX 130 SE Series Turbine Engine, 30 lbs Thrust

Note: This item doesn't qualify for a *FREE SHIPPING PROMOTION there is a FLAT RATE SHIPPING CHARGE ($60) that applies to all turbine engines, please select the correct option during the checkout.

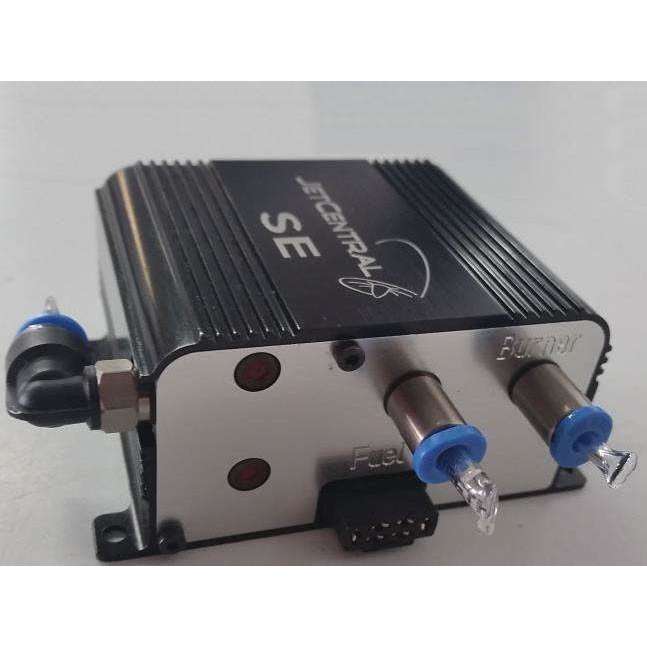

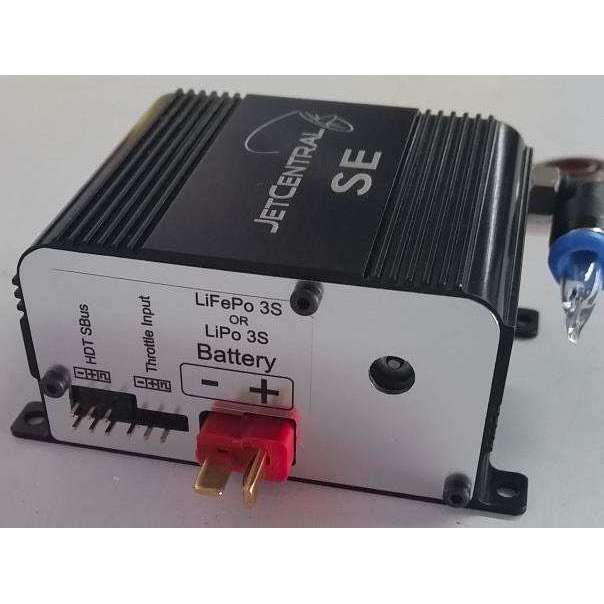

NEW! JetCentral "SE" Smart Electronics ECU System

• Metallic robust HDT
• Safety acceleration flameout prevention
• Self-adjusting features
• Easy fine-tuning, do more with less adjustment
• Simple, graphic navigation menus
• Keep track of your telemetry with an easy to use interface
• One-click altitude compensations
• All the information you need in an easy to read display

The JETCENTRAL TURBINE ENGINES are in there own right a single stage centrifugal flow gas turbine engine, configured to operate as a TURBOJET ENGINE for use mainly, but not exclusively, in remotely piloted fixed wing aircraft. Such aircraft and their control systems must be appropriately designed and constructed to be compatible with the performance of the TURBOJET ENGINE.

• Kerosene Start
• Engine ready for installation, with the newest in ECU's.
• All motors tested at over 6000 ft.



JETCENTRAL MAINTENANCE CYCLE:

25 HOURS/$250 OVERHAUL FEE + $60 SHIPPING



 SPECIFICATIONS:

• Thrust: 13.26 kg (30 lbs) @ 130,000 RPM
• Idle Thrust: 0.43 kg (0.94 lbs)
• RPM Range: 55,000 – 130,000
• Weight: 1.29 kg (2.84 lbs) with starter
• Diameter: 99 mm (3.90 in)
• Length: 227.00 mm (8.94 in) with a starter
• Exhaust Gas Temperature: 500º C – 700º C (932ª F – 1292ª F)
• Fuel Consumption: 0.43 lt/min (15.13 oz/min)

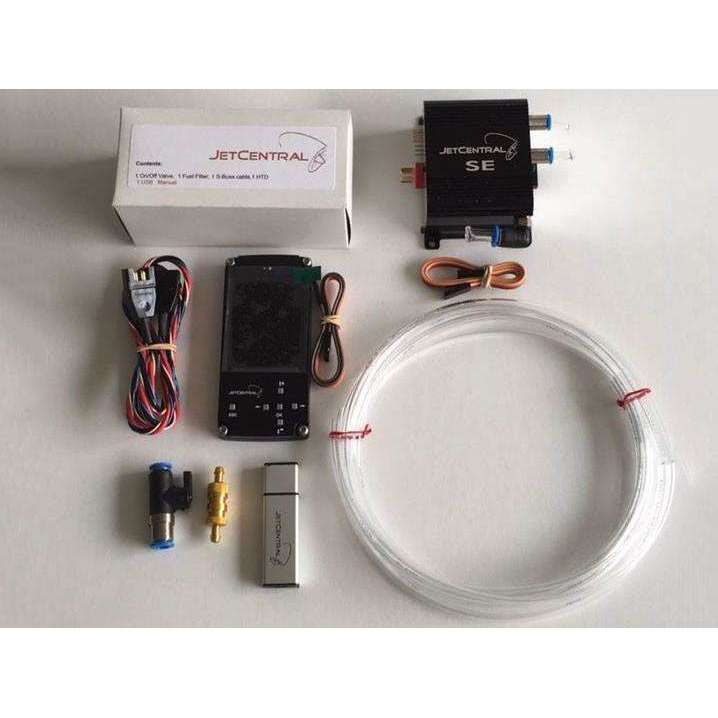

WHAT'S IN THE BOX:

• Turbine Engine with integrated ECU

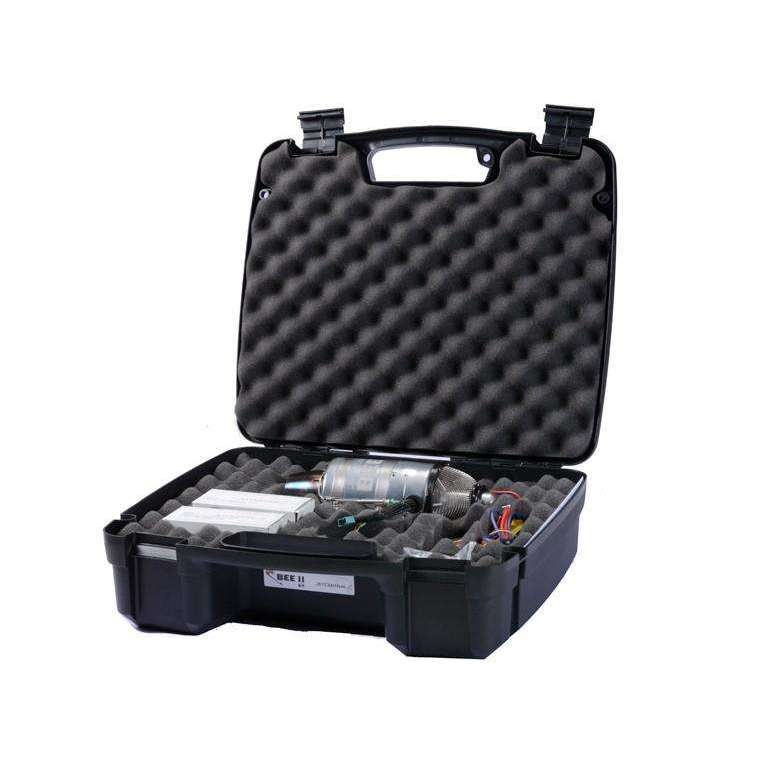

• Hard Case
• SE POWERPACK Unit
• Clear Fuel Line 4mm
• Clear Kerosene Start Line 3mm
• Clear Fuel Line 6mm
• ECU Battery
• Accessory Box
  • On/Off Manual Festo Valve (6mm.)
  • Hanger 9 Fuel Filter
  • S-Bus / Power Cable
  • USB Flash with Manuals

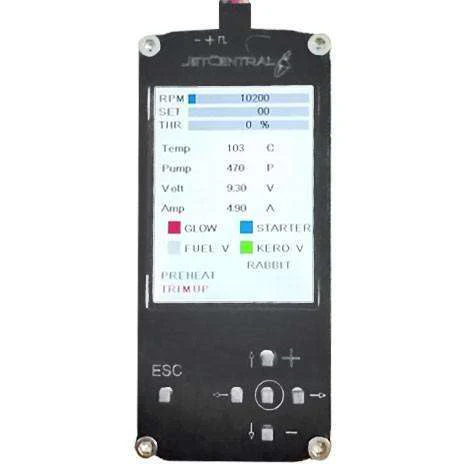

  • SE Hand Data Terminal (HDT)
  • JR Style Receiver throttle cable

• LOOKING FOR TELEMETRY!! Imagine all the data displayed on your GSU (HDT) on your radio!!!

  • For Jeti User JetCentral offers there an onboard solution that you can find by clicking HERE



  For:  Spectrum / Futaba / PowerBox / Multiplex / Graupner / JR Propo or FrSky







   and The AeroPanda Team  officially and exclusive recommend the  telemetry converters, that you can find for this engine HERE

JetCentral Lynx 130 MANUAL  Click Here
