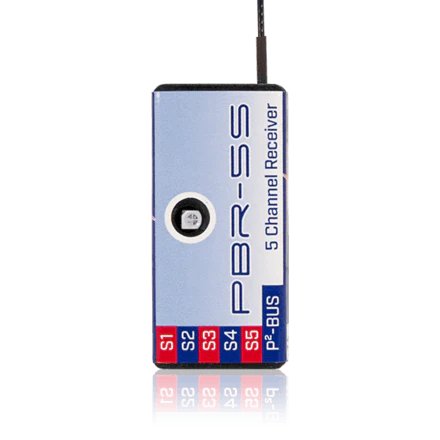

PBR-5S (5 Channel 2.4GHz Micro Receiver)
HomeStore

PBR-5S (5 Channel 2.4GHz Micro Receiver)

PBR-5S (5 Channel 2.4GHz Micro Receiver)

$24.30

Original: $81.00

-70%
PBR-5S (5 Channel 2.4GHz Micro Receiver)—

$81.00

$24.30

The Story

PBR-5S

Features

  • 5 Channel 2.4GHz Micro-Receiver
  • Extreme interference rejection
  • ultra-long range
  • Integral telemetry / servo bus (P²BUS)
  • High-performance real-time telemetry
  • Reception quality and airborne battery voltage available via telemetry as standard
  • Parameters for all functions can be set from the transmitter

Technical Data

Operating voltage 4.0V - 9.0V
Supported RC systems CORE
Channels 26
Servo sockets 5
Servo signal resolution 4096 Bit
Supported telemetry systems P²BUS
Dimensions 44 x 20 x 12 mm
Weight 7g
Temperature range -30°C to +85°C

Product description

The receiver units

Five different receivers are available to match the CORE:

PBR-9D
This is a nine-channel receiver with two redundant receiver circuits. The unit features a P²-BUS interface for servo and telemetry data, and an auxiliary output which can be configured either as SRXL bus or as channel 10.

PBR-7S
This is a seven-channel receiver with a single receiver circuit. The unit features a P²-BUS interface for servo and telemetry data, and an auxiliary output which can be configured either as SRXL bus or as channel 8.

PBR-5S
This is a five-channel receiver with a single receiver circuit and an integral Chip aerial. The unit features a P²-BUS interface for servo and telemetry data, while its minuscule size makes it the natural choice for small models.

PBR-26D
This is a satellite receiver featuring two redundant receiver circuits. The unit features a P²-BUS interface for servo and telemetry data, and an auxiliary output which can be configured either as SRXL bus or S-BUS. This unit is designed to be connected to our PowerBox power supply systems or a flybarless system.

PBR-8E
This is a eight-channel receiver with two redundant receiver circuits. The unit features 8 PWM servo outputs and telemetry data for battery voltage and RF-data.

With the exception of the PBR-5S and the PBR-8E all receivers have a FastTrack interface with which the iGyro SAT can be easily connected!

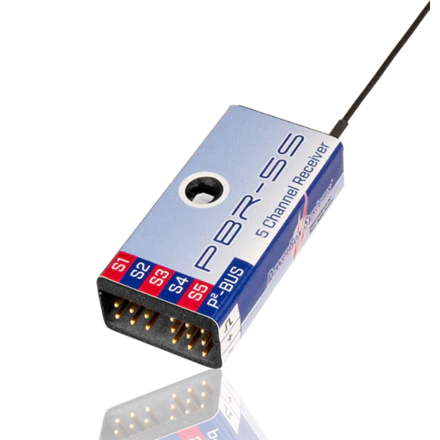

PBR-5S (5 Channel 2.4GHz Micro Receiver) - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

PBR-5S

Features

  • 5 Channel 2.4GHz Micro-Receiver
  • Extreme interference rejection
  • ultra-long range
  • Integral telemetry / servo bus (P²BUS)
  • High-performance real-time telemetry
  • Reception quality and airborne battery voltage available via telemetry as standard
  • Parameters for all functions can be set from the transmitter

Technical Data

Operating voltage 4.0V - 9.0V
Supported RC systems CORE
Channels 26
Servo sockets 5
Servo signal resolution 4096 Bit
Supported telemetry systems P²BUS
Dimensions 44 x 20 x 12 mm
Weight 7g
Temperature range -30°C to +85°C

Product description

The receiver units

Five different receivers are available to match the CORE:

PBR-9D
This is a nine-channel receiver with two redundant receiver circuits. The unit features a P²-BUS interface for servo and telemetry data, and an auxiliary output which can be configured either as SRXL bus or as channel 10.

PBR-7S
This is a seven-channel receiver with a single receiver circuit. The unit features a P²-BUS interface for servo and telemetry data, and an auxiliary output which can be configured either as SRXL bus or as channel 8.

PBR-5S
This is a five-channel receiver with a single receiver circuit and an integral Chip aerial. The unit features a P²-BUS interface for servo and telemetry data, while its minuscule size makes it the natural choice for small models.

PBR-26D
This is a satellite receiver featuring two redundant receiver circuits. The unit features a P²-BUS interface for servo and telemetry data, and an auxiliary output which can be configured either as SRXL bus or S-BUS. This unit is designed to be connected to our PowerBox power supply systems or a flybarless system.

PBR-8E
This is a eight-channel receiver with two redundant receiver circuits. The unit features 8 PWM servo outputs and telemetry data for battery voltage and RF-data.

With the exception of the PBR-5S and the PBR-8E all receivers have a FastTrack interface with which the iGyro SAT can be easily connected!
