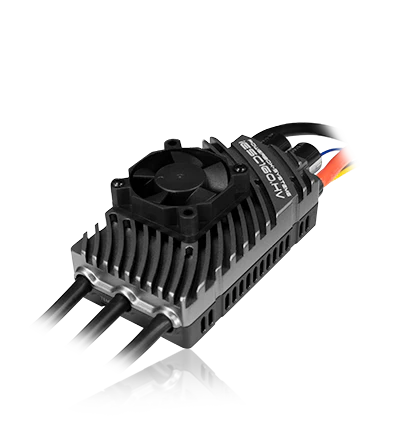

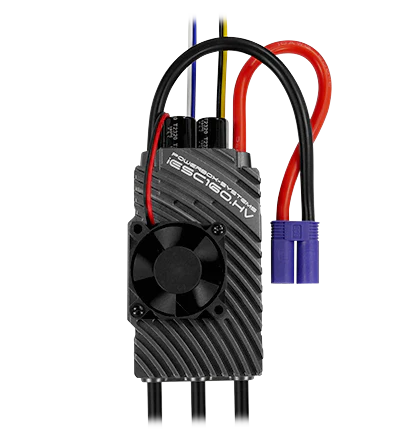

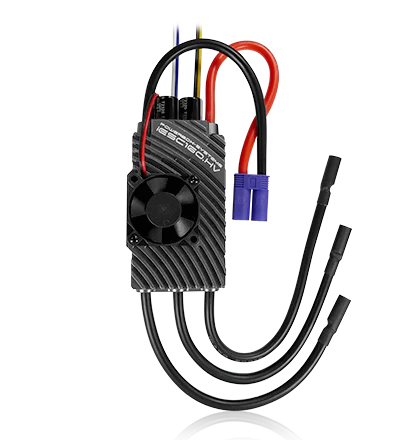

PowerBox iESC 160.HV

The iESC series is the latest generation of controllers for brushless motors with a 32-bit processor. Telemetry and adjustability from the transmitter are standard features.

Features

High-performance brushless controller with 32-bit technology
The latest MosFet generation for less power loss and maximum
reliability
Telemetry for PowerBox, Jeti, and Futaba remote controls
Fixed-wing and Heli mode
The direction of rotation, timing, battery type, freewheel, starting current, and other
parameters adjustable
Adjustable control parameters in Heli mode
Adjustable parameters directly on the transmitter for PowerBox and Jeti
Parameters adjustable via LCD programming device for all systems
Integrated electronic anti-flash circuit
HV Opto version
Self-test when switching on checks engine, throttle position, and voltage
Optimal cooling through sophisticated housing design

Technical data

Operating voltage	6s - 14s
Current carrying capacity	160A / 180A continuous/peak
Signal input	PWM
Supported remote control systems	PowerBox, Jeti, Futaba, and others without telemetry
Supported telemetry systems	P²-BUS, EX-BUS, S.BUS2
Dimensions	97x51x34mm
Weight	199g
Temperature range	-20°C to +85°C

What it's in the box

• 1x iESC 160.HV
• User manual in German and English

Product Description

The iESC is based on the latest generation of controllers for brushless motors with a 32-bit processor and advanced functions such as telemetry and adjustability directly from the transmitter. The powerful microprocessor ensures smooth motor operation for brushless motors with up to 40 poles.

Braking force, motor timing, direction of rotation, gear ratio, freewheel, heli mode, and much more can be set directly via the PowerBox or Jeti transmitter. Setting boxes or jumper cards are now a thing of the past.

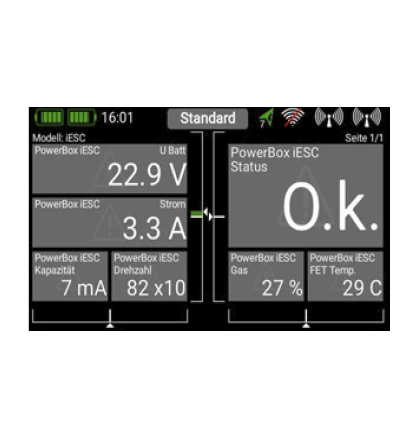

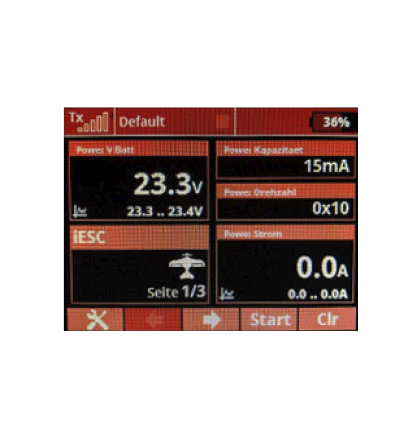

The iESC provides extensive telemetry data for PowerBox, Jeti, and Futaba transmitters, such as battery voltage, current, consumed capacity, speed, and the temperature of the controller.

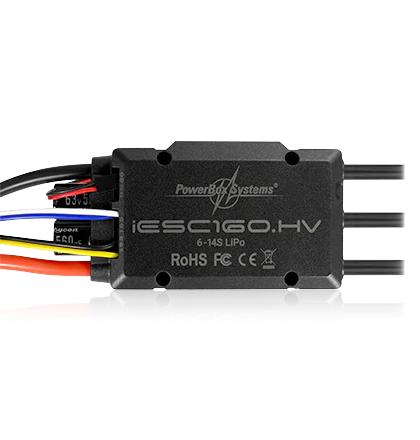

The designation HV stands for high voltage, the iESC HV can handle up to 14s batteries and is designed as an opto version.

Downloads

operation manual

PowerBox iESC 160.HV (PDF)
